Level Controller Module, 12V DC/AC Water Level Controller Automatic Liquid Level Detection Sensor Module, Water Control Relay Switch Module for Fish Tank Aquarium Home Water Tower
Product details
| Management number | 250271556 | Release Date | 2026/09/17 | List Price | US$4.57 | Model Number | 250271556 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification: Model: LC25A01 Weight: 28g/1oz Working voltage: DC 12-15V(AC 9-12V) Standby current 10MA Working current 40MA Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC Size: 54*27*19mm/2.1*1.1*0.7inch Application: Home water tower automatic water supply system. Aquarium fish tank water changer system. Conductive liquid automatic control. Automatic feeding system for poultry and livestock. Farm automatic water supply system. And other occasions that require automatic water supply and water exchange. Solenoid valve water pump motor automatic control. Interface description: HIGH : Upper limit probe OUT : Output probe LOW : Lower limit probe IN+ : Power terminal 1 (regardless of positive and negative) IN- : Power terminal 2 (regardless of positive and negative) NC: Relay normally closed contact COM: Relay common contact NO: Relay normally open contact Package List: 1 x Level Controller Module Note: 1. Package does not contain probe (wire).No need to use a dedicated probe, the probe can be made using household wires 2. For safety, use an AC/DC power supply with good isolation.
- WATER LEVEL AUTOMATIC CONTROLLER: supports manual or automatic mode control of water pump, with relay dry node output, suitable for various load control, simple and convenient installation, screws can be positioned and installed, and electric box rails can also be installed.
- LIQUID CONTROL SWITCH MODULE: strong compatibility, can be used with a variety of liquid level sensors. Strong protection, with waterproof pump idling protection and water level overflow detection output.
- WIDE RANGE OF APPLICATIONS: household water tower automatic water supply system, aquarium fish tank water exchange system, conductive liquid automatic control, livestock automatic feeding system, farm automatic water supply system and other occasions that require automatic water supply and water exchange.

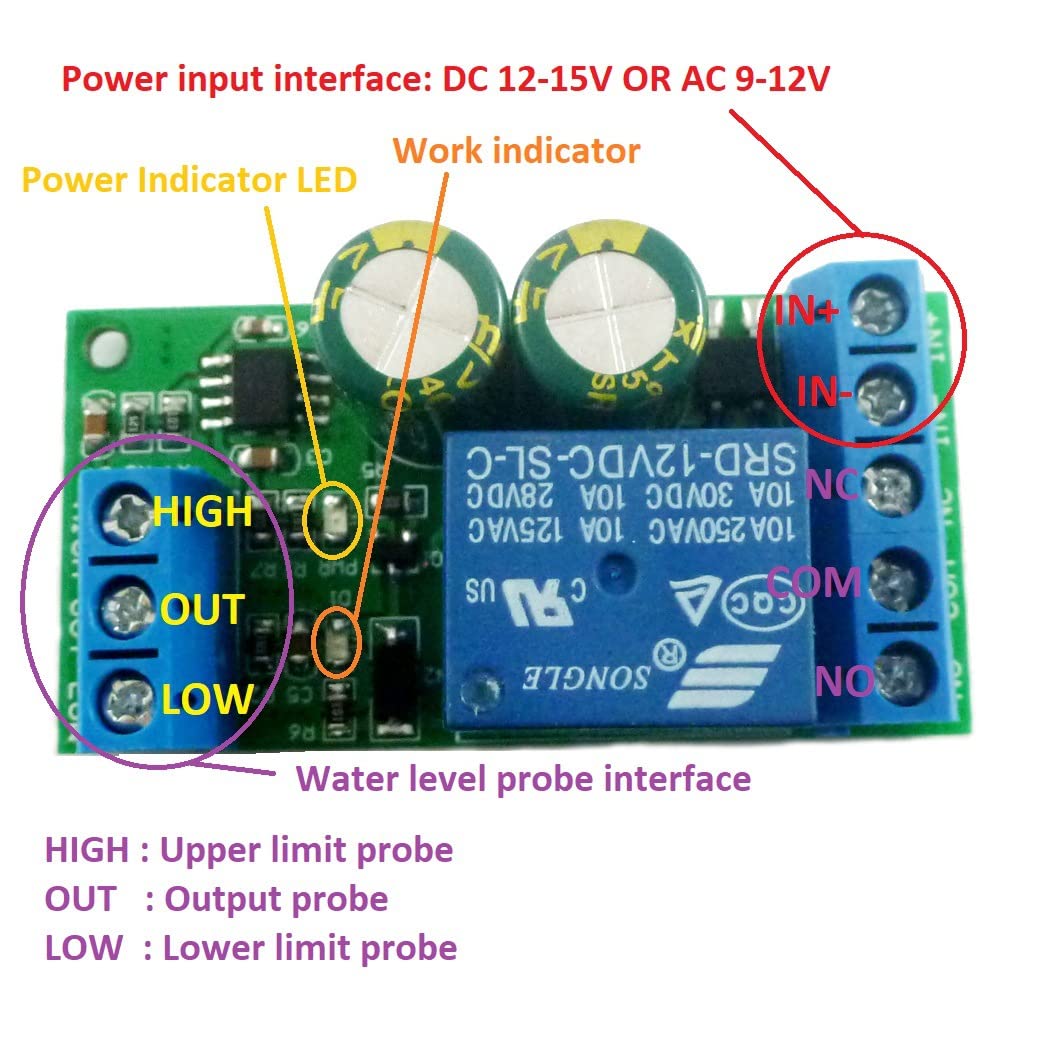

- INTERFACE DESCRIPTION: HIGH: upper limit probe; OUT: output probe; LOW: lower limit probe; IN+: power terminal 1 (regardless of positive and negative); IN-: power terminal 2 (regardless of positive and negative); NC: relay normally closed Contact; COM: relay common contact; NO: relay normally open contact.
- PARAMETERS: Working voltage: DC 12-15V (AC 9-12V); Standby current 10MA; Working current 40MA; Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC.
| UPC | 738585077093 |
|---|---|
| ASIN | B081Q4DZ61 |
| Color | Green |
| Model | LC25A01 |
| Brand Name | TTAMG |
| Unit Count | 1 Count |
| Part Number | Thincolwgaydghtv6 |
| Manufacturer | Thincol |
| Material Type | Copper |
| Mounting Type | Screw |
| Connector Type | Screw |
| Current Rating | 10 A |
| Number Of Poles | 5 |
| Number of Items | 1 |
| Number of Packs | 1 |
| Centerline Length | 5.4 centimeters |
| Specification Met | IEC, ISO 9001, RoHS, UL |
| Number Of Contacts | 8 |
| Number of Positions | 5 |
| Item Dimensions W x H | 2.1"W x 1.1"H |
