2-Pack Floor Foot Switch,Round Black Inline Foot Pedal Switch

Installation Steps (for reference only): 1. Turn off the power supply and disassemble the switch. 2. Strip the insulation from the lamp cord at the location where the switch will be installed, (the length of the stripped insulation depends on the size of the switch). 3. Expose the neutral wire and hot wire. 4. Cut and separate the exposed hot wire. 5. Insert the ends of the cut and separated hot wire into the small holes on either side of the switch. 6. Route the neutral wire into the track labeled "N" on the base. 7. Place the spring over the switch. 8. Place the button over the spring and switch. 9. Squeeze the top and base together completely to ensure a firm fit. 10. Tighten all screws. 11. Turn on the power supply and press the button to check if it works properly. Product Name: Floor foot switch Material: Pure Copper Plated with Nickel&PP Color: Black Size: 69.2×29.5mm / 2.72×1.16 inches (Dia×H) Compatible Wire Gauges: 0.3 to 0.75 mm² Voltage/Current: 2A/250V, 3A/125V; Rated Power: 100W Weight: 26g / 0.92oz per Package List: 2 pcs inline foot pedal Note: 1. For indoor use only. Do not expose to water or use in high humidity areas. 2. To prevent the electric shock, please disconnect the power supply before installation. 3. If you lack of electrical knowledge, it is recommended to hire a professional electrician for installation.

• 𝐒𝐩𝐞𝐜𝐢𝐟𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬: Floor Foot Switch Overall Sizes: 69.2×29.5mm / 2.72×1.16 inches (diameter×height); Compatible with Wire Gauges: 0.3 to 0.75 mm²; Voltage/Current: 2A/250V, 3A/125V; Rated Power: 100W
• 𝐌𝐚𝐭𝐞𝐫𝐢𝐚𝐥: The inline foot pedal shell is made of PP material, is wear-resistant and has excellent insulating properties. The conductor is made of pure copper plated with nickel, which has good electrical conductivity, is safe and reliable, can maintain stable connections, and provides a longer service life

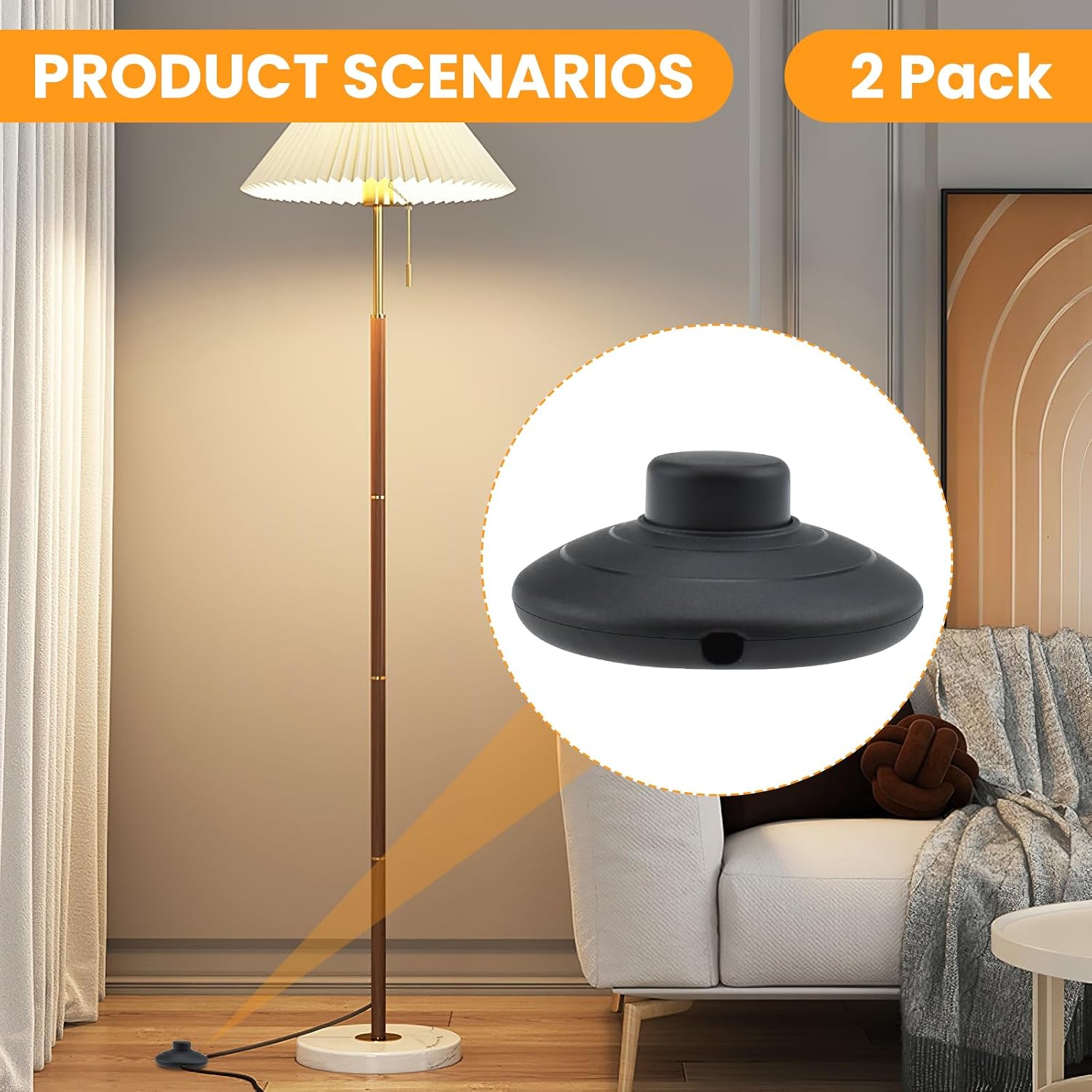

• 𝐖𝐢𝐝𝐞𝐥𝐲 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐛𝐥𝐞: The floor lamp foot switch is suitable for controlling the on/off of most low-power industrial, office, home appliances, and lighting fixtures, such as floor lamps, Christmas tree lights, standing fans, pedestal fans, base fans, small home appliances, and more
• 𝐄𝐚𝐬𝐲 𝐭𝐨 𝐈𝐧𝐬𝐭𝐚𝐥𝐥: The foot pedal push switch is easy to install. First, turn off the power and disassemble the switch. Then connect the hot wire to the terminal, route the neutral wire to the "N" track on the base. Finally, reinstall the spring, button, and cover, and tighten the screws to complete the installation
• 𝐏𝐚𝐜𝐤𝐚𝐠𝐞 𝐈𝐧𝐜𝐥𝐮𝐝𝐞𝐬: You will receive 3 pcs step-on-button. The step-on-button has an automatic wire lock function. Push the wire into the switch interface firmly, and the wire will be clamped automatically
